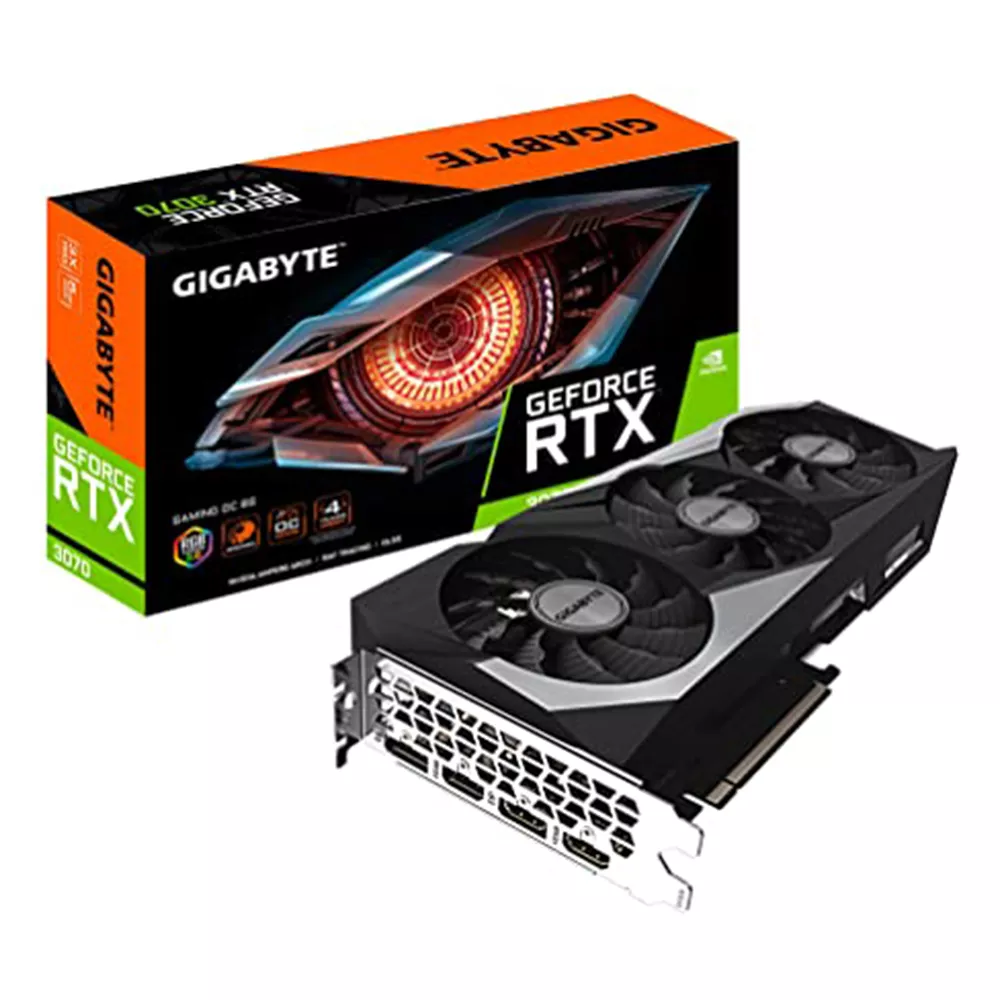

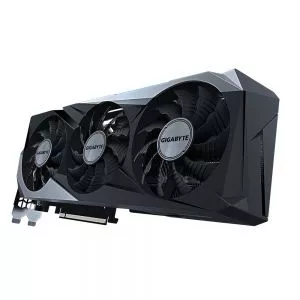

Carte Graphique GeForce RTX™ 3070 GAMING OC 8G
NVIDIA Ampere Streaming Multiprocessors / 2nd Generation RT Cores / 3rd Generation Tensor Cores / Powered by GeForce RTX™ 3070 / Integrated with 8GB GDDR6 256-bit memory interface / WINDFORCE 3X Cooling / System with alternate spinning fans / RGB Fusion 2.0 / Protection metal back plate / CORE CLOCK 1815 MHz (Reference Card: 1725 MHz)
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Graphics Processing GeForce RTX™ 3070
Core Clock 1815 MHz (Reference Card: 1725 MHz)
CUDA® Cores 5888
Memory Clock 14000 MHz
Memory Size 8 GB
Memory Type GDDR6
Memory Bus 256 bit
Memory Bandwidth (GB/sec) 448 GB/s
Card Bus PCI-E 4.0 x 16
Digital max resolution 7680x4320
Card size L=286 W=115 H=51 mm
PCB Form ATX
DirectX 12 Ultimate
Recommended PSU 650W
Power Connectors 8 pin*1 + 6 pin*1
Output DisplayPort 1.4a *2 HDMI 2.1 *2
