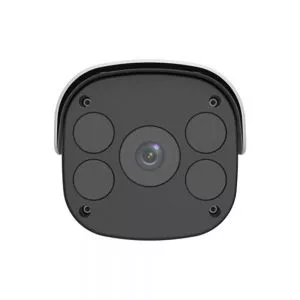

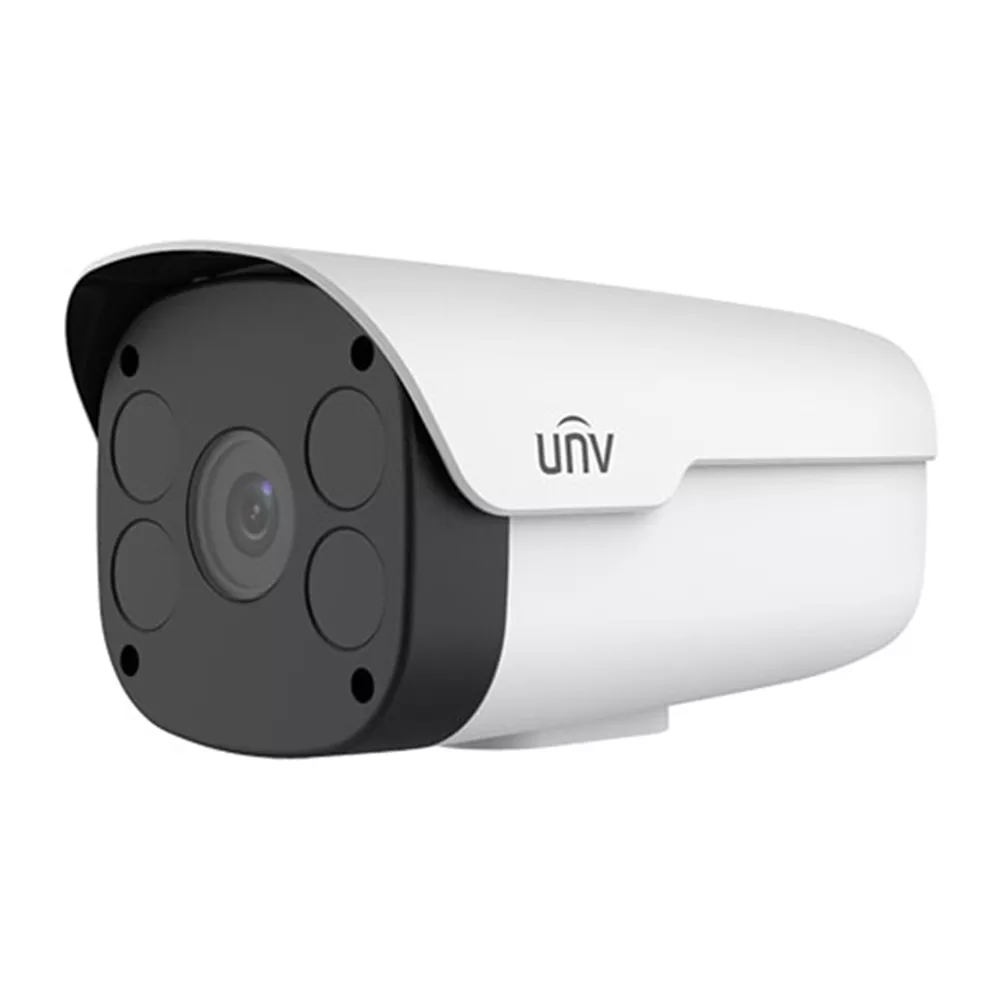

CAMERA UNV TUBE 2MP + SUPPORT 2C22LR6-PF40-E
CAMERA UNV TUBE 2MP + SUPPORT 2C22LR6-PF40-E
CAMERA UNV TUBE 2MP + SUPPORT 2C22LR6-PF40-E
CAMERA UNV TUBE 2MP + SUPPORT 2C22LR6-PF40-E

CAMERA UNV TUBE 2MP + SUPPORT 2C22LR6-PF40-E

179 DT
Référence: IPC2C22LR6-PF40-E
Stock: En stock
Disponibilité:
Web
Kairouan
Charguia

Optics

* Day/night functionality

* Smart IR, up to 60m (197ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.265, H.264

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

* Wide voltage range of ±25%

* IP67

Partager sur Facebook

Camera
Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F2.0 4.0mm@F2.0
6.0mm@F2.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4.0 60 24 12 6
6.0 90 36 18 9
Angle of View (H) 4mm: 86.5°
6mm: 55.4°
Angle of View (V) 4mm: 44.1°
6mm: 30.2°
Angle of View (O) 4mm: 106.4°
6mm: 68.1°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 60m (197ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR DWDR

Video
Video Compression Ultra 265, H.265, H.264
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 1080P (1920*1080), Max 25fps;
Sub Stream: 4CIF (704*576), Max 25fps;
Third Stream: CIF (352*288), Max 25fps
Video Bit Rate 128 Kbps~6 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas

White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported

Network
Protocols IPv4, TCP, UDP, RTP, RTSP, DNS, HTTP, DHCP, DDNS, NTP, UPnP
Compatible Integration ONVIF ( Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Network 10/100M Base-TX Ethernet

Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General
Power DC 12V±25% DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5W
Dimensions (L × W × H) 169.4 × 98.1 × 92.0mm (6.7" × 3.9" × 3.6")
Net Weight 0.38kg (0.84lb)
Material Metal + Plastic
Working Environment -30? ~ 60? (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30? ~ 60? (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
