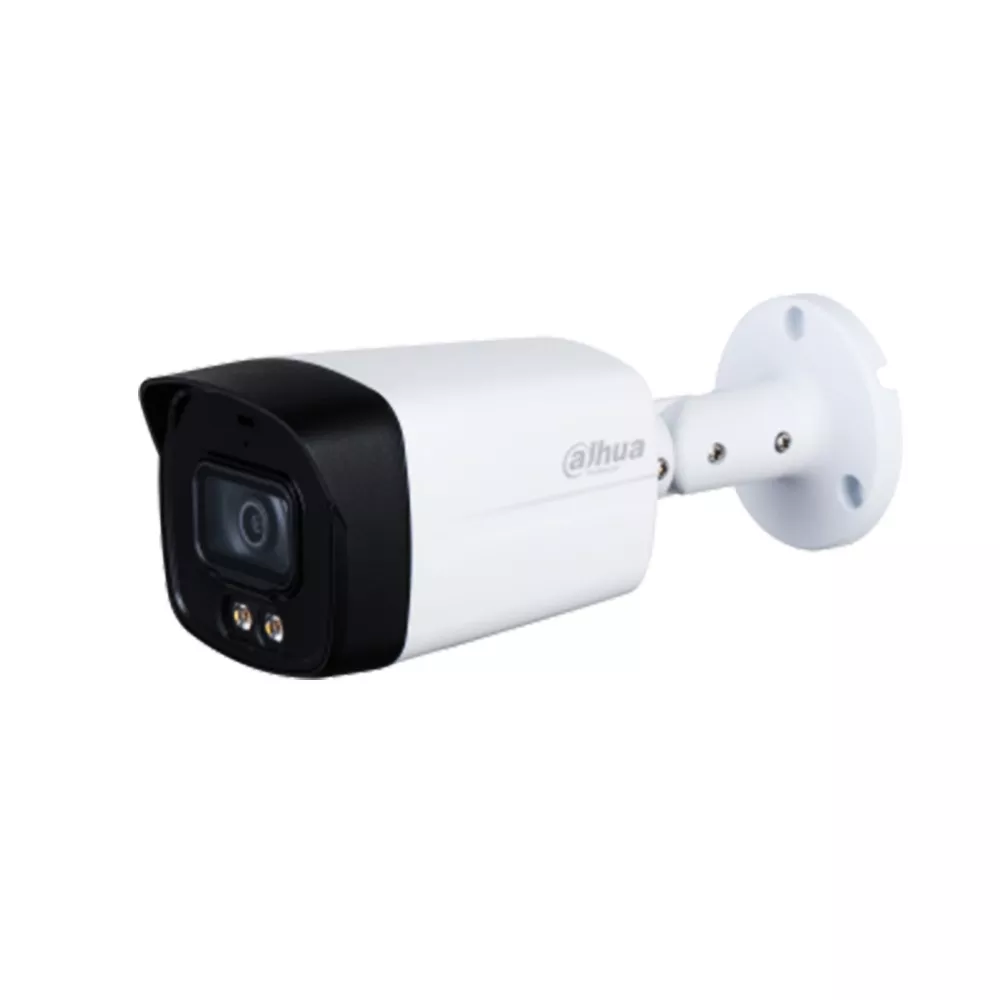

CAMERA HD TUBE 5MP DAHUA FULL COLOR HFW1509TLM-LED
CAMERA HD TUBE 5MP DAHUA FULL COLOR HFW1509TLM-LED
CAMERA HD TUBE 5MP DAHUA FULL COLOR HFW1509TLM-LED

CAMERA HD TUBE 5MP DAHUA FULL COLOR HFW1509TLM-LED

229 DT
Référence: HFW1509TLM-LED
Stock: Hors stock
En arrivage: non
Disponibilité:
Web
Kairouan
Charguia

5MP Full-color HDCVI Bullet Camera



Max 25 fps@5MP (16:9 video output)

120 dB true WDR, 3D NR

24/7 color imaging

40 m illumination distance

CVI/CVBS/AHD/TVI switchable

Built-in mic (-A)

2.8 mm fixed lens

IP67, 12 V DC
Partager sur Facebook

Camera
Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL:1/3 s–1/100,000 s
NTSC:1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.0, 0 Lux warm light on
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88; V: 46°; D: 104°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 1.6 m (5.25 ft);
3.6 mm: 2.3 m (7.5 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 67.4 m 27.0 m 13.5 m 6.7 m
(212.3 ft) (88.6 ft) (44.3 ft) (22.0 ft)
3.6 mm 80.0 m 32.0 m 16.0 m 8.0 m
(262.5 ft) (105.0 ft) (52.5 ft) (26.2 ft)

Video
Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)

Certifications
Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic (-A)

Power
Power Supply 12 V ±30% DC
Power Consumption Max 6.4 W (12 V DC, warm light on)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Protection Grade IP67

Structure
Casing Metal front cover + plastic main body + metal bracket
Camera Dimensions 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.15" × 3")
Net Weight 0.33 Kg (0.73 lb)
Gross Weight 0.52 Kg (1.15 lb)
