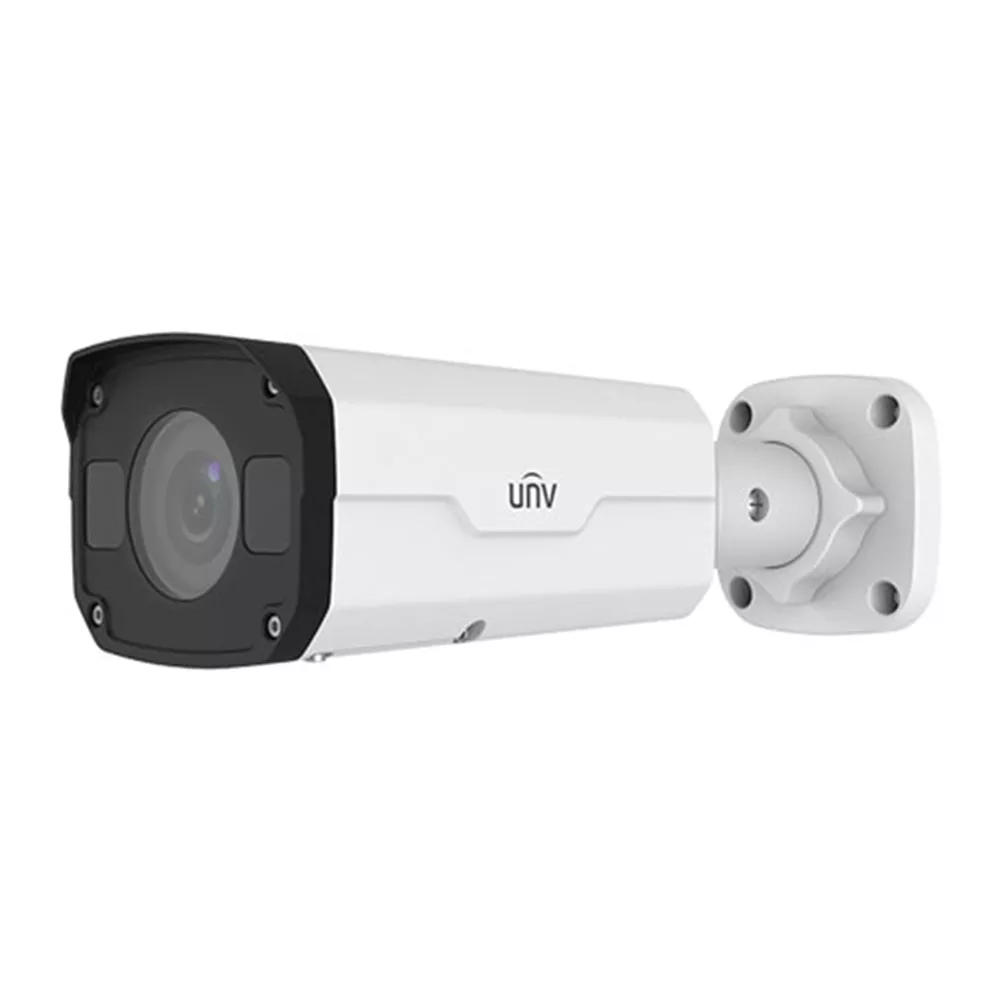

CAMERA UNV TUBE 2MP 2322LBR3-SP-D

CAMERA UNV TUBE 2MP 2322LBR3-SP-D

289 DT
Référence: IPC2322LBR3-SP-D
Stock: En stock
Disponibilité:
Web
Kairouan
Charguia

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Triple streams

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C to 60°C (-22°F to 140°F)

* Wide voltage range of ±25%

* IP67

* 3-Axis

Camera

Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, manual zoom lens 2.8 ~ 12mm, motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 42 16.8 8.4 4.2
12 180 72 36 18
Angle of View (H) 112.7° ~ 28.1°
Angle of View (V) 60.1° ~ 15.4°
Angle of View (O) 146.5° ~ 33.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F1.6, AGC ON)
0Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR DWDR

Video

Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (704*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping Supported
HLC Supported
BLC Supported

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS,

DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Storage

Edge Storage Micro SD, up to 256GB
Network Storage ANR

Interface

Network 1 RJ45 100M Base-TX Ethernet

Certifications

Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.5W
Dimensions (L × W × H) 240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”)
Net Weight 1kg (2.2lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
